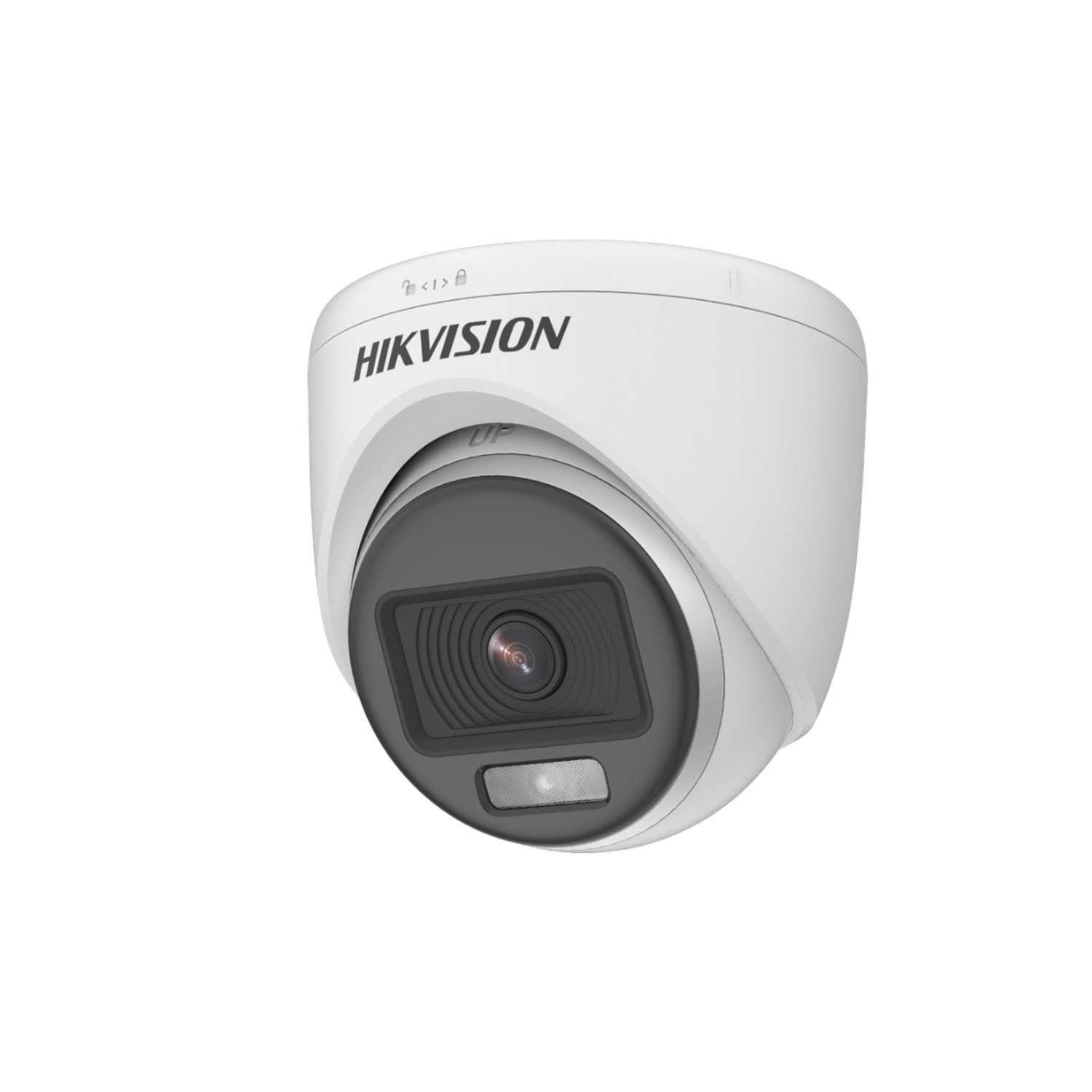

HİKVİSİON DS-2CE70DF0T-PF COLOR-VU 2,8MM 1080P LENS DOME KAMERA

Kamera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Light Alarm

Solid Light Alarm (White Light)

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°


3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°


6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°


Lens Mount

M12

Illuminator

Supplement Light Range

Up to 20 m

Smart Supplement Light

Yes

Supplement Light Type

White Light


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness, Mirror, Sharpness, Anti-Banding, AGC

Frame Rate

TVI: 1080p@25fps/30fps


CVI: 1080p@25fps/30fps


AHD: 1080p@25fps/30fps


CVBS: PAL/NTSC


Day/Night Mode

Color

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR, BLC, HLC, Global

Noise Reduction

3D DNR/2D DNR

White Balance

Auto/Manual

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Plastic

Dimension

? 85.02 mm × 81.25 mm (? 3.35" × 3.2")

Approx. 161 g (0.36 lb)

Operating Condition

-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Power

12 VDC ± 25%, Max. 2.4 W


*You are recommended to use one power adapter to supply the power for one camera.
