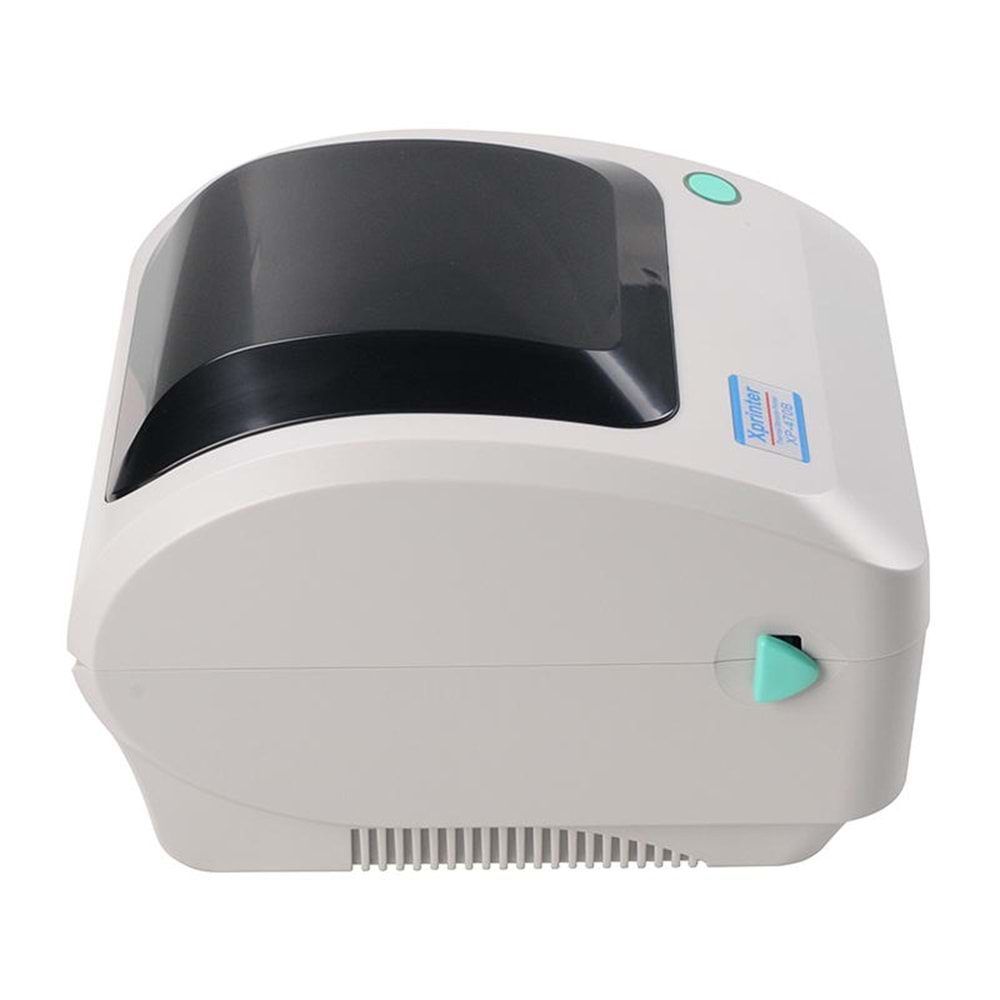

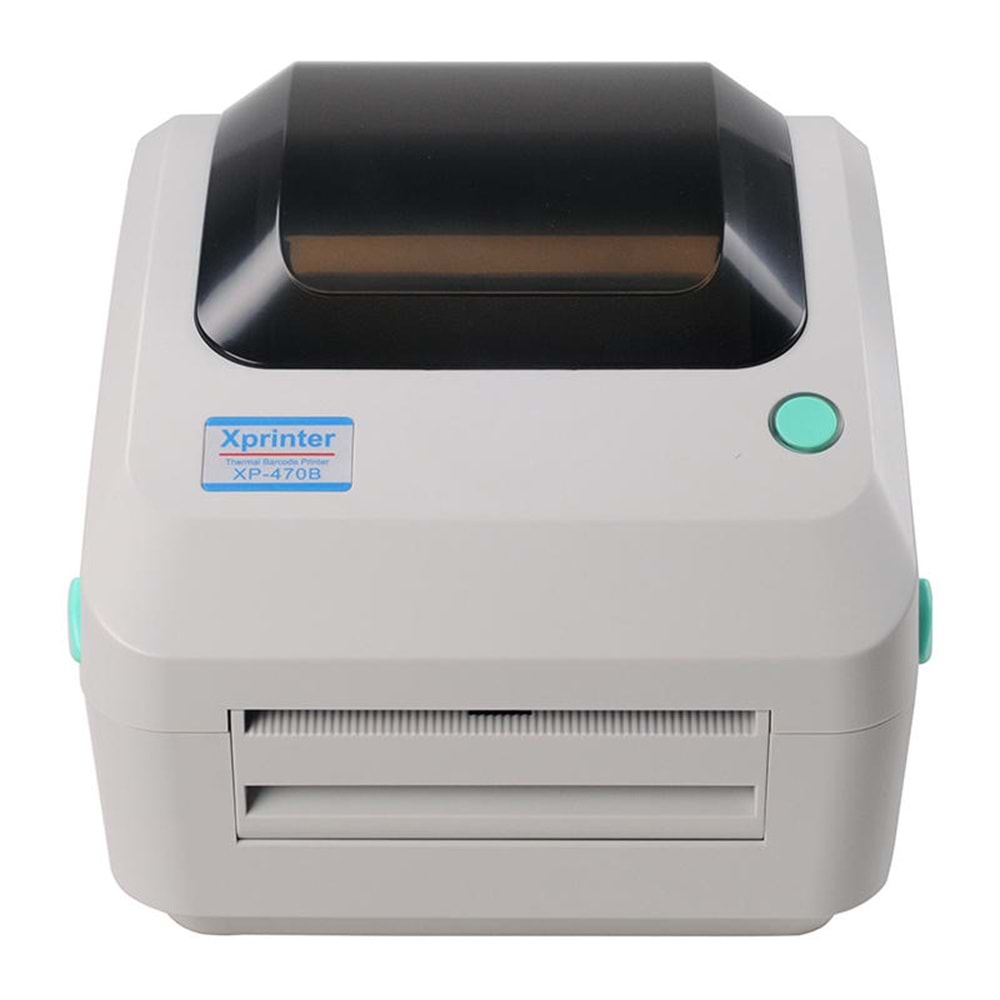

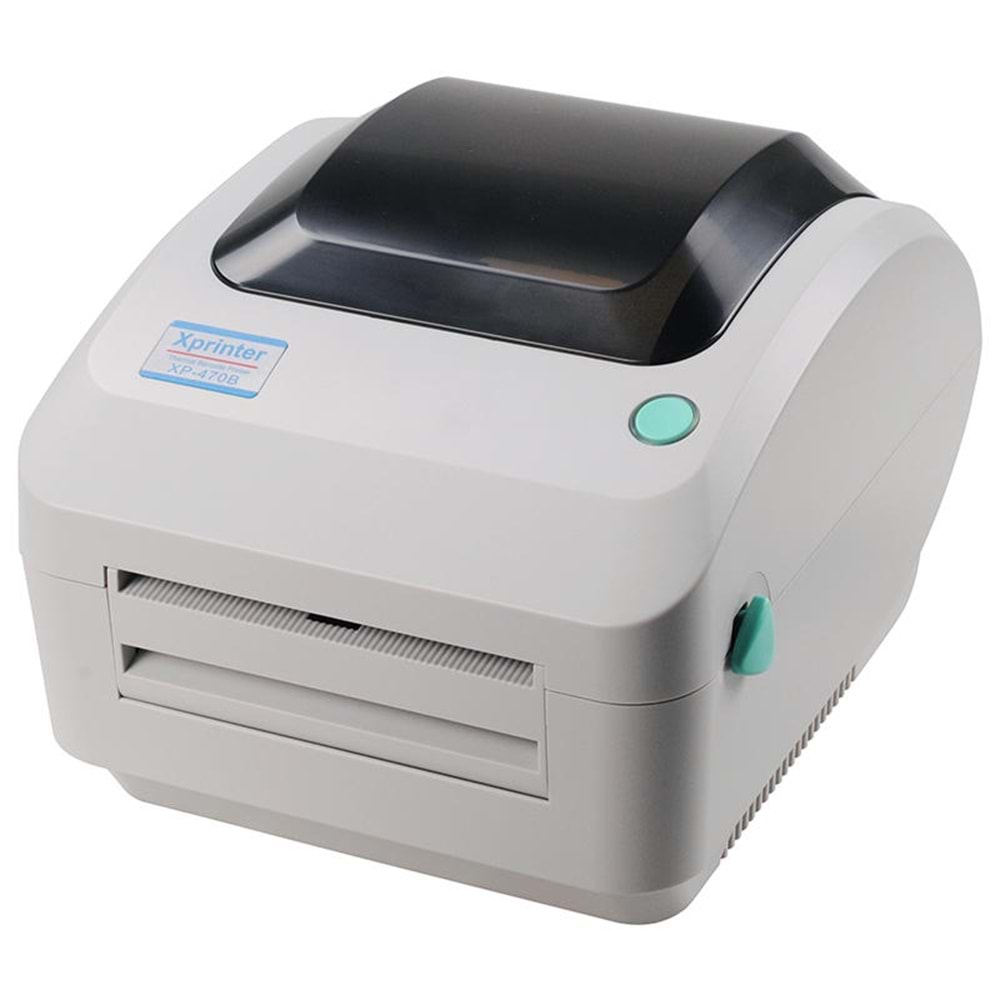

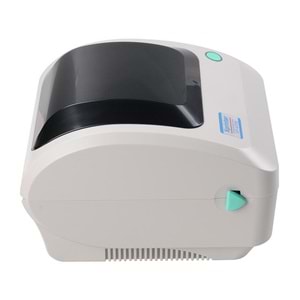

XPRINTER XP-470B DİREKT TERMAL BARKOD YAZICI 152mm/s 4 inç-USB+SERİ+LAN
- Barkodu: 8690000011445
- Stok Kodu: ST00721
- Markası : XPRINTER
- Modeli: XP-470B
Whatsapp ile Sipariş
XPRINTER XP-470B DİREKT TERMAL BARKOD YAZICI 152mm/s 4 inç-USB+SERİ+LAN
Product Overview
Product Specification
Product Video
Service and Support
? Manufacturing: Item labels, instruction labels, products labels.
? Healthcare: Patient identification, pharmacy, specimen identification.
? Retail: Price tags, shelf labels, inventory labeling, product labeling.
| ? High quality double-walled clamshell design | ? 203 dpi resolution models |

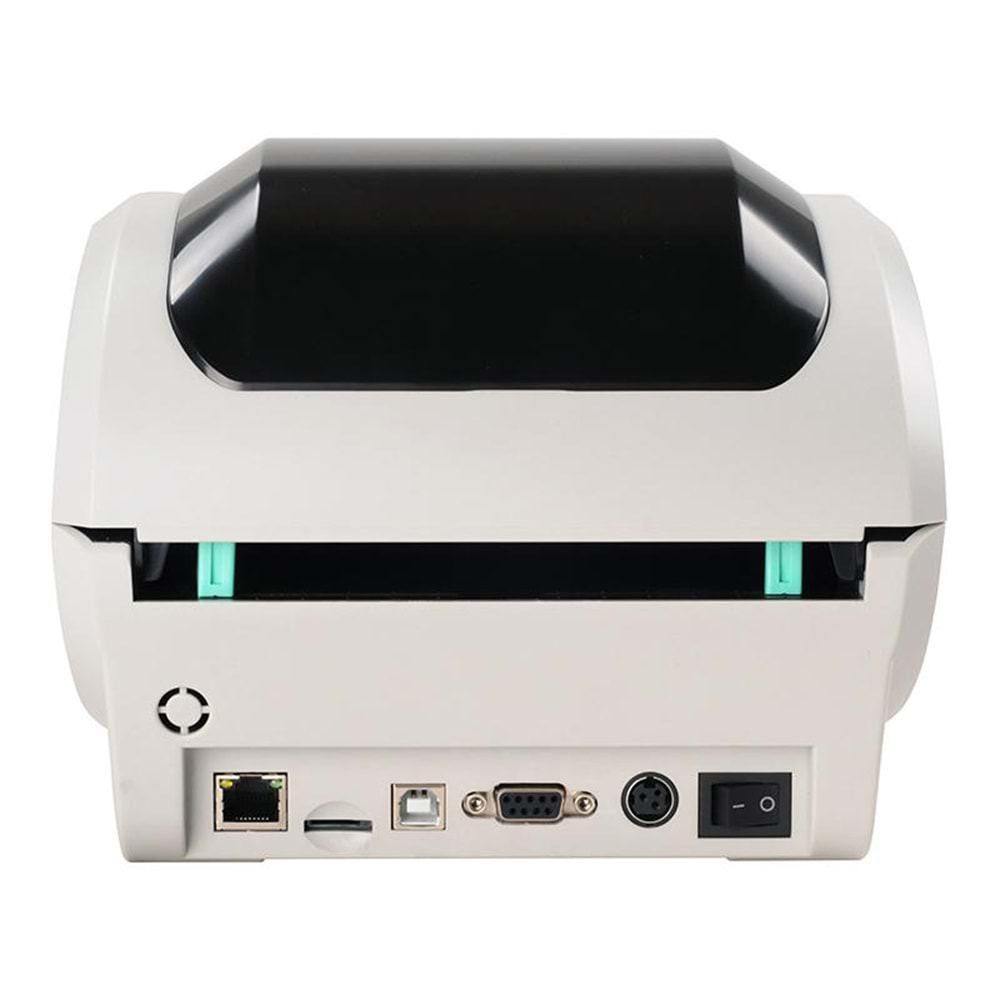

| ? Head-up sensor | ? Multiple interfaces:standard version:USB+TF card , Optional:Serial/Lan/WIFI/Bluetooth |
| ? 8MB SDRAM, 8MB Flash | ? 152mm(6'')/s Max.high printing speed |
| Printer Model | XP-470B | |
| Printing Features | ||
| Resolution | 203 DPI | |
| Print method | Direct Thermal | |
| Max.print speed | 152 mm(6'')/s Max. | |
| Max.print width | 108 mm (4.25") | |
| Max.print length | 1778 mm (70") | |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4-118mm (1.0”-4.6”) | |
| Media thickness | 0.06 ~ 0.25 mm (2.36 ~ 9.8 mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") | |
| Label length | 10 ~ 1778 mm (0.39 " ~ 70 ") | |
| Label roll capacity | 127 mm (5“) (External diameter) | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb | |
| Interface | Standard:USB TF card Optional:Serial/Lan/WIFI/Bluetooth | |
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 ,subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, | |
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code | |
| Rotation | 0°?90°?180°?270° | |
| Emulaion | TSPL?EPL?ZPL?DPL | |
| Physical Features | ||
| Dimension | 240(D) x 212(W) x172(H)mm | |
| Weight | 1.58kg | |
| Reliability | ||
| Warranty | One year | |
| Print head life | 30 km | |
| Software | ||
| Driver | Windows/Linux/Mac | |
| SDK | Windows/Android/iOS | |
| Power adaptor | ||
| Input:AC 100-240V,1.8A, 50-60Hz | ||
| Output:DC 24V, 2.5A, 60W | ||
| Options | ||
| Factory Options | ?Serial ?Lan ?WIFI ?Bluetooth ?Peeler ?RTC | |
| Dealer Options | ?External paper roll holder and 1 "paper roll ?Extension board for external paper roll holder ?Shipment waybill box | |
| Environmental Conditions | ||
Operation environment | 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% non-condensing | |
| Storage environment | -40 ~ 60°C(-40~140°F),Humidity:10 ~ 90% non-condensing | |
A:Specialized in Receipt printers, Label Printers, Mobile Printers, Panel printers, Kiosk printer, Dot Matrix Printer , Bluetooth printers.
A:We support 12 months for all of our products.
A:Less than 0.3%
A:1% FOC parts dispatched with shipment. When it is damaged, you can replace it directly.
A:Delivery terms can be EX-WORKS, FOB or C&F.
A:For less than 1000pcs, 7-10 working days.
For more than 1000pcs, 10-15 working days.
A:Thermal printer compatible with ESC\POS.
Label printer compatible with TSPL\ EPL\ DPL\ ZPL emulation.
A:We are a company with ISO9001:2015 international QMS certification. Our products have obtained CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI certifications.
