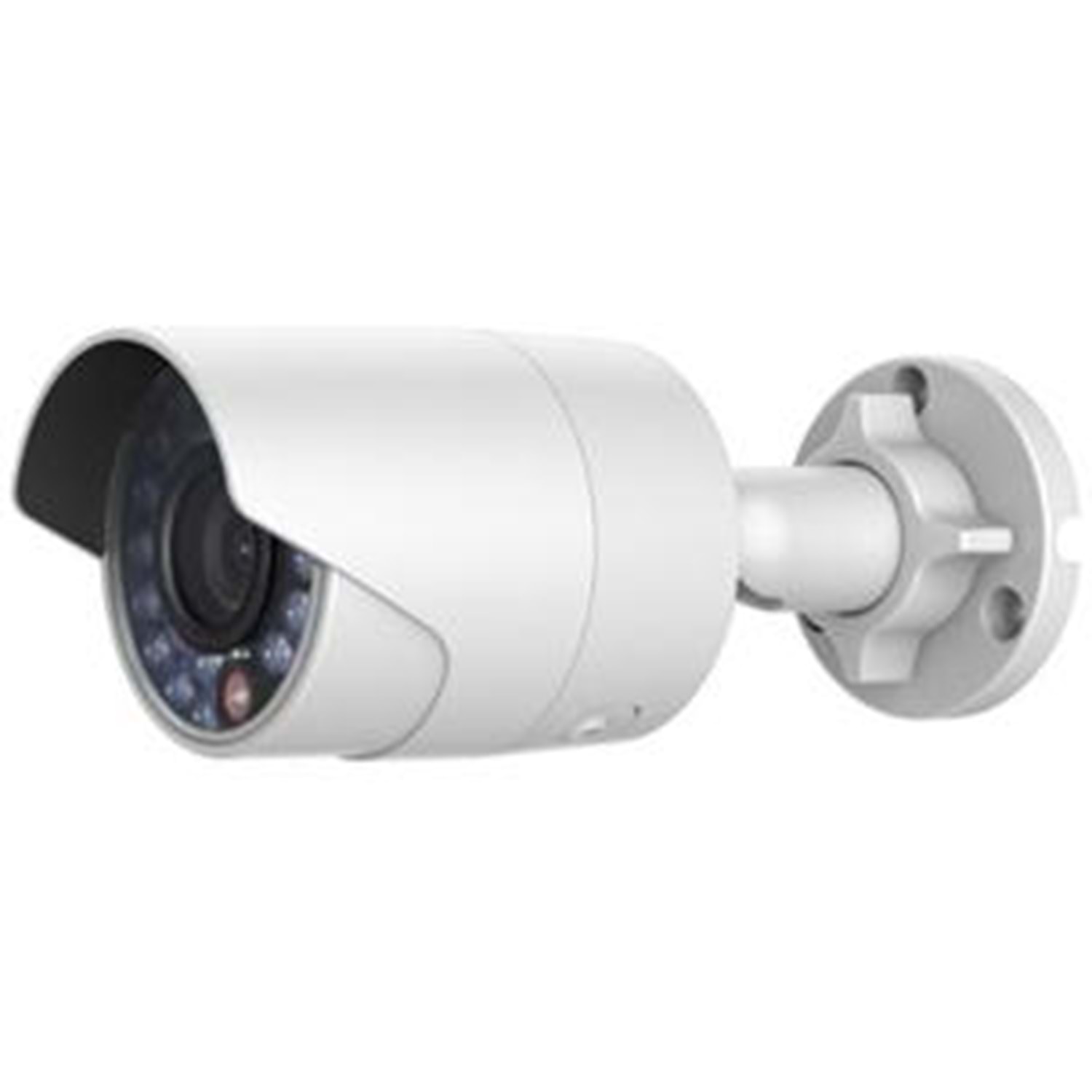

HIKVISION DS-2CD2020F-IW 2MP 4MM LENS 30MT G.G BULLET KAMERA

HAIKON DS-2CD2020F-IW 2MP 4mm 30MT IR Bullet Network Camera



2 MP yüksek çözünürlük

HD gerçek zamanlı video

3D DNR ve DWDR ve BLC

IR LED: 30 m'ye kadar

IP67

PoE

Dahili Mikro SD / SDHC / SDXC kart yuvası, 128G'a kadar



Teknik Özellikler







Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
İşaret Sistemi: PAL/NTSC
Minimum Aydınlatma: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Objektif Hızı: 1/3 s to 1/100,000 s
Lens: 4mm@ F2.0, Angle of view: 85°
(6mm optional)
Lens Mount: M12
Auto Iris: DC drive
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Dijtal Gürültü Azaltma: 3D DNR
Compression Standard
Video Compression: H.264/MJPEG
Video bit rate: 32Kbps~8Mbps
Çift Akış: Yes
Max. Image Resolution: 1920 x 1080
Çerçeve Hızı: 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: support
3D DNR: support
Network
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protokoller: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Dahili Depolama: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu: Yes
Wi-Fi Specification (-W)
Kablosuz Standartlar: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Kanal Bant Genişliği: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Kablosuz Menzil: 50m(depend on environment)
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi: Max. 5.8W
Weather Proof: IP67
IR Range: Up to 30m
Boyutlar: 70×157×62mm (2.8? × 6.1? × 2.4?)
Ağırlık: 500g (1.1 lbs)
Teknik Özellikler
Kayıt Formatı? H265
POE DESTEĞİ? Var
Desteklenen Kayıt Formatı? 1080p (1920x1080 Pixels)
Kamera Çözünürlüğü (MegaPixel)? 2.0 MegaPixel (1080p)
IR Led Sayısı? 30 IR Led
Gece Görüş Mesafesi? 45 metre
Verimli Gece Görüş Mesafesi? 14-32 metre arası
Lens? 3.6mm (Geniş Açı)
Lens Açısı? 83° (Yatay 67° - Dikey 50°)
Tavsiye Edilen Kullanım Mesafesi? 0-50 metre
Sensör Tipi? 1/3" Ti+SONY EXMOR IP
Menşei (Made in)? Çin
Kasa Tipi? Metal
Diğer Özellikler
Stok Kodu 2311
Marka Haikon
Stok Durumu Var
Garanti (Yıl) 2
